Technical Capabilities

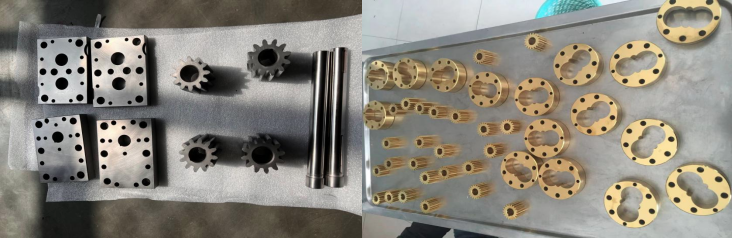

Laser Micro-Machining Products

Laser Processing Accuracy: ±1μm

Product Positioning Accuracy: ±1μm

Minimum Hole Diameter: Conical Holes: ≥5μm

                                           Straight Holes: ≥25μm

Applicable Materials: Metals: Tungsten, molybdenum, steel, aluminum, copper, gold, silver, tantalum

                                     Polymers: PI, PE, PTFE, PET, PS

                                     Other Materials: Quartz glass, ceramics (Al₂O₃, ZrO₂, AlN, Si₃N₄, SiC),

                                                                diamond, sapphire, and more.

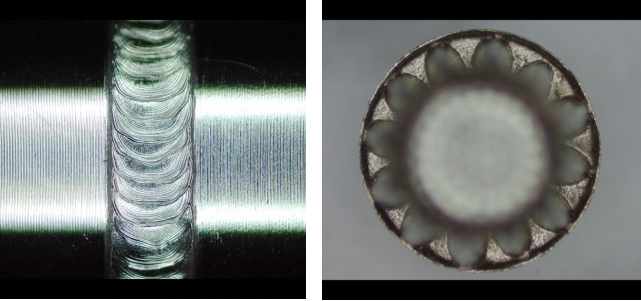

Micro-Welding Products

We offer a wide range of micro-welding products and processes, along with

comprehensive welding technology development services.

Types of Welding: Laser welding

                                Brazing

                                Diffusion bonding

                                TIG welding

                                Friction welding

                                Specialized welding techniques tailored to your needs.

3D Printing Services

We offer advanced design, printing, and technology development for both metal and non-metal 3D printed products.

PVD (Physical Vapor Deposition) Coatings

Coating options：TiN, TiCN, TiAlN, and more.

Coating Thickness: 1-5 microns

Key Benefits: provide exceptional durability and performance, engineered for

high hardness, strong adhesion, wear resistance, friction reduction, and heat resistance

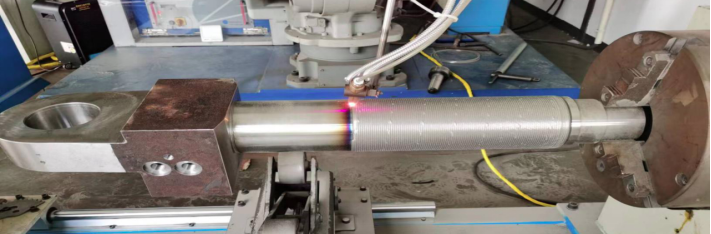

Laser Cladding Surface Modification

Our cladding technology ensures metallurgical bonding with the substrate, offering superior strength and toughness.

Cladding Thickness: Adjustable from 0.1mm to 4mm

Surface Hardness: Up to HRC63

Key Benefits: Improved wear resistance, corrosion resistance, heat resistance, and oxidation resistance.
